Weld Neck Flanges-ANSI B16.5


Class 150 lb

Pipe Flange Data Hub Data

Nominal

Pipe Size

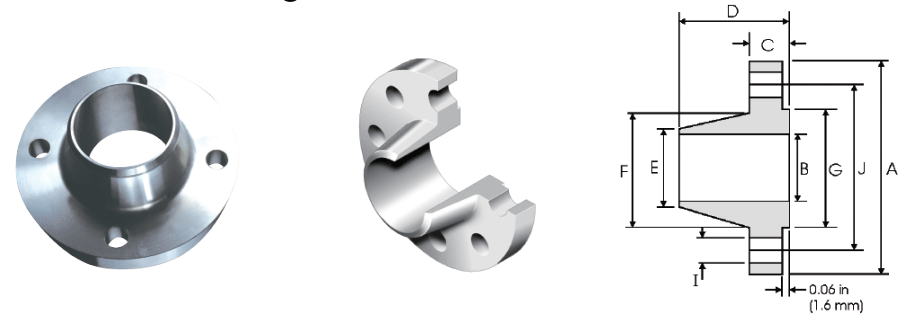

image.pngABCDEF

Outside

Diameter

Overall

Diameter

Inside

Diameter

Flange

Thickness

min

Overall

 Length

Diameter

at Weld

Bevel

Diameter

of Circles

of Holes

mmmmmmmmmmmmmm
1/221.3088.9015.70     11.20    47.8021.3030.20
3/426.7098.6020.80 12.7052.3026.7038.10
133.40108.026.70 14.2055.6033.5049.30
1 1/442.20117.335.10 15.7057.1542.2058.70
1 1/248.30127.040.90 17.5062.0048.3065.00
260.30152.452.60 19.1063.5060.4577.70
2 1/273.00177.862.70 22.4069.8573.1590.40
388.90190.578.00 23.9069.8588.90108.0
3 1/2101.6215.990.20 23.9071.40101.6122.2
4114.3228.6102.4 23.9076.20114.3134.9
5141.3254.0128.3 23.9088.90141.2163.6
6168.3279.4154.2 25.4088.90168.4192.0
8219.1342.9202.7 28.40101.6219.2246.1
10273.0406.4254.5 30.20101.6273.0304.8
12323.8482.6304.8 31.75114.3323.8365.3
14355.6533.4To be specified by Purchaser35.10127.0355.6400.1
16406.4596.936.60127.0406.4475.2
18457.2635.039.60139.7457.2505.0
20508.0698.542.90144.5508.0558.8
24609.6812.847.80152.4609.6663.4


Pipe

Raised

 Face

Drilling

Data

Weight

Nominal

Pipe Size


Outside

Diameter

Face

 Diameter

Number

 of

Holes

Bolt

Hole

 Diameter

Diameter

of Circles

of Holes

kg/ pieces
mmmm
mmmm
1/221.3035.00415.7060.450.48
3/426.7042.90415.7069.850.71
133.4050.80415.7079.251.01
1 1/442.2063.50415.7088.901.33
1 1/248.3073.15415.7098.601.72
260.3091.90419.10120.72.58
2 1/273.00104.6419.10139.74.11
388.90127.0419.10152.44.92
3 1/2101.6139.7819.10177.86.08
4114.3157.2819.10190.56.84
5141.3185.7822.40215.98.56
6168.3215.9822.40241.310.6
8219.1269.7822.40298.517.6
10273.0323.91225.40362.024.0
12323.8381.01225.40431.836.5
14355.6412.81228.40476.348.4
16406.4469.91628.40539.860.6
18457.2533.41631.75577.968.3
20508.0584.22031.75635.084.5
24609.6692.22035.10749.3115


Class 300 lb


Pipe Flange Data Hub Data

Nominal

Pipe Size

image.pngABCDEF

Outside

Diameter

Overall

Diameter

Inside

Diameter

Flange

Thickness

min

Overall

Length

Diameter

at Weld

Bevel

Hub

Diameter

mmmmmmmmmmmmmm
1/221.3095.2015.7014.2052.3021.3038.10
3/426.7011.7320.8015.7057.1526.7047.70
133.4012.3926.7017.5062.0033.5053.80
1 1/442.2013.3335.1019.0065.0042.2063.50
1 1/248.3015.5440.9020.6068.3048.3069.85
260.3016.5152.6022.3069.8560.4584.00
2 1/273.0019.0562.7025.4076.2073.15100.00
388.90209 .578.0028.4079.2588.90117.30
3 1/2101.6228.6030.2030.2081.00101.60133.30
4114.3254.00102.4031.7085.80114.30146.00
5141.3279.40128.3035.0098.50141.20177.80
6168.3317.50154.2036.5098.50168.40206.20
8219.1381.00202.7041.10111.2219.20260.30
10273.0444.50254.5047.70117.3273.00320.50
12323.8520.70304.8050.80130.0323.80374.60
14355.6584.20

To be

 specified

by

purchaser

53.80142.7355.60425.40
16406.4647.7057.15146.0406.40482.60
18457.2711.2060.45158.7457.20533.40
20508.0774.7063.50162.0508.00587.20
24609.6914.4069.85168.1609.00701.50


Pipe Raised FaceDrilling DataWeight

Nominal

Pipe Size


Outside

Diameter

Face

 Diameter

Number

of Holes

Bolt

Hole

Diameter

Diameter

of Circles

of Holes

kg/ pieces
mmmm
mmmm
1/221.3035.0015.7066.550.75
3/426.7042.90419.0082.501.26
133.4050.80419.0088.901.52
1 1/442.2063.50419.0098.502.03
1 1/248.3073.15422.30114.32.89
260.3091.90819.00127.03.40
2 1/273.00104.60822.30149.35.17
388.90127.00822.30168.16.93
3 1/2101.6139.70822.30184.18.67
4114.3157.20822.30200.111.2
5141.3185.70822.30234.915.1
6168.3215.901222.30269.719.1
8219.1269.701225.40330.229.9
10273.0323.801628.40387.342.7
12323.8381.001631.70450.861.8
14355.6412.702031.70514.385.8
16406.4469.902035.00571.5106
18457.2533.402435.00628.6131
20508.0584.202435.00685.8158
24609.6692.102438.10812.8230


Class 600 lb


Pipe Flange Data Hub Data

Nominal

Pipe Size

image.pngABCDEF

Outside

 Diameter

Overall

Diameter

Inside

 Diameter

Flange

Thickness

 min

Overall

 Length

Diameter at

Weld Bevel

Hub

Diameter

mmmmmmmmmmmmmm
1/221.3095.20

To be

 specified

by

purchaser

14.2052.3021.3038.10
3/426.7011.7315.7057.1526.7047.80
133.4012.3917.5062.0033.5053.80
1 1/442.2013.3320.6066.5542.2063.50
1 1/248.3015.5422.4069.8548.3069.85
260.3016.5125.4073.1560.4584.10
2 1/273.0019.0528.4079.2573.15100.10
388.90209 .531.7582.6088.90117.30
3 1/2101.6228.6035.1085.90101.60133.40
4114.3254.0035.1088.90114.30146.10
5141.3279.4038.10101.60141.20177.80
6168.3317.5041.10103.10168.40206.20
8219.1381.0047.80117.3219.20260.40
10273.0444.5053.80124.0273.00320.50
12323.8520.7057.15136.7323.80374.70
14355.6584.2060.45149.4355.60425.50
16406.4647.7063.50152.4406.40482.60
18457.2711.2066.55165.1457.20533.40
20508.0774.7069.85168.1508.00587.20
24609.6914.4076.20174.8609.00701.50


Pipe Raised FaceDrilling DataWeight

Nominal

Pipe Size


Outside

Diameter

Face

Diameter

Number

of Holes

Bolt Hole

Diameter

Diameter of

Circles

of Holes

kg/ pieces
mmmm
mmmm
1/221.3035.0015.7066.550.87
3/426.7042.90419.1082.601.45
133.4050.80419.1088.901.76
1 1/442.2063.50419.1098.602.49
1 1/248.3073.15422.40114.33.49
260.3091.90819.10127.04.36
2 1/273.00104.60822.40149.46.43
388.90127.00822.40168.18.53
3 1/2101.6139.70825.40184.210.7
4114.3157.20825.40200.212.8
5141.3185.70825.40235.016.9
6168.3215.901225.40269.722.0
8219.1269.701228.40330.234.7
10273.0323.801631.75387.448.5
12323.8381.001635.10450.969.6
14355.6412.702035.10514.495.5
16406.4469.902038.10571.5118
18457.2533.402438.10628.7145
20508.0584.202441.10685.8173
24609.6692.102447.80812.8249


Class 900 lb


Pipe Flange Data Hub Data

Nominal

Pipe Size

image.pngABCDEF

Outside

Diameter

Overall

Diameter

Inside

 Diameter

Flange

Thickness

min

Overall

Length

Diameter

 at Weld

Bevel

Hub

Diameter

mmmmmmmmmmmmmm
1/221.3095.2015.7014.2052.3021.3038.10
3/426.7011.7320.8015.7057.1526.7047.70
133.4012.3926.7017.5062.0033.5053.80
1 1/442.2013.3335.1019.0065.0042.2063.50
1 1/248.3015.5440.9020.6068.3048.3069.85
260.3016.5152.6022.3069.8560.4584.00
2 1/273.0019.0562.7025.4076.2073.15100.00
388.90209 .578.0028.4079.2588.90117.30
3 1/2101.6228.6030.2030.2081.00101.60133.30
4114.3254.00102.4031.7085.80114.30146.00
5141.3279.40128.3035.0098.50141.20177.80
6168.3317.50154.2036.5098.50168.40206.20
8219.1381.00202.7041.10111.2219.20260.30
10273.0444.50254.5047.70117.3273.00320.50
12323.8520.70304.8050.80130.0323.80374.60
14355.6584.20

To be

 specified

by

purchaser

53.80142.7355.60425.40
16406.4647.7057.15146.0406.40482.60







18457.2711.2060.45158.7457.20533.40
20508.0774.7063.50162.0508.00587.20
24609.6914.4069.85168.1609.00701.50


Pipe Raised FaceDrilling DataWeight

Nominal

Pipe Size


Outside

Diameter

Face

Diameter

Number

of Holes

Bolt Hole

Diameter

Diameter of

Circles of Holes

kg/ pieces
mmmm
mmmm
1/221.3035.0015.7066.550.75
3/426.7042.90419.0082.501.26
133.4050.80419.0088.901.52
1 1/442.2063.50419.0098.502.03
1 1/248.3073.15422.30114.32.89
260.3091.90819.00127.03.40
2 1/273.00104.60822.30149.35.17
388.90127.00822.30168.16.93
3 1/2101.6139.70822.30184.18.67
4114.3157.20822.30200.111.2
5141.3185.70822.30234.915.1
6168.3215.901222.30269.719.1
8219.1269.701225.40330.229.9
10273.0323.801628.40387.342.7
12323.8381.001631.70450.861.8
14355.6412.702031.70514.385.8
16406.4469.902035.00571.5106
18457.2533.402435.00628.6131
20508.0584.202435.00685.8158
24609.6692.102438.10812.8230


Class 1500 lb


Pipe Flange Data Hub Data

Nominal

Pipe Size

ABCDEF

Outside

Diameter

Overall

Diameter

Inside

Diameter

Flange

Thickness

min

Overall

Length

Diameter at

Weld Bevel

Hub

Diameter

mmmmmmmmmmmmmm
1/221.3095.2015.7014.2052.3021.3038.10
3/426.7011.7320.8015.7057.1526.7047.70
133.4012.3926.7017.5062.0033.5053.80
1 1/442.2013.3335.1019.0065.0042.2063.50
1 1/248.3015.5440.9020.6068.3048.3069.85
260.3016.5152.6022.3069.8560.4584.00
2 1/273.0019.0562.7025.4076.2073.15100.00
388.90209 .578.0028.4079.2588.90117.30
3 1/2101.6228.6030.2030.2081.00101.60133.30
4114.3254.00102.4031.7085.80114.30146.00
5141.3279.40128.3035.0098.50141.20177.80
6168.3317.50154.2036.5098.50168.40206.20
8219.1381.00202.7041.10111.2219.20260.30
10273.0444.50254.5047.70117.3273.00320.50
12323.8520.70304.8050.80130.0323.80374.60
14355.6584.20To be specified by purchaser53.80142.7355.60425.40
16406.4647.7057.15146.0406.40482.60
18457.2711.2060.45158.7457.20533.40
20508.0774.7063.50162.0508.00587.20
24609.6914.4069.85168.1609.00701.50


Pipe Raised FaceDrilling DataWeight

Nominal

Pipe Size


Outside

Diameter

Face

Diameter

Number

of Holes

Bolt Hole

Diameter

Diameter

 of Circles

of Holes

kg/ pieces
mmmm
mmmm
1/221.3035.0015.7066.550.75
3/426.7042.90419.0082.501.26
133.4050.80419.0088.901.52
1 1/442.2063.50419.0098.502.03
1 1/248.3073.15422.30114.32.89
260.3091.90819.00127.03.40
2 1/273.00104.60822.30149.35.17
388.90127.00822.30168.16.93
3 1/2101.6139.70822.30184.18.67
4114.3157.20822.30200.111.2
5141.3185.70822.30234.915.1
6168.3215.901222.30269.719.1
8219.1269.701225.40330.229.9
10273.0323.801628.40387.342.7
12323.8381.001631.70450.861.8
14355.6412.702031.70514.385.8
16406.4469.902035.00571.5106
18457.2533.402435.00628.6131
20508.0584.202435.00685.8158
24609.6692.102438.10812.8230


Class 2500 lb


Pipe Flange DataWeight

Nominal

Pipe Size


Outside

Diameter

Overall

Diameter

Inside

Diameter

Flange

Thickness

min

Overall

Length

kg/ pieces
mmmmmmmmmm
 1/221.30 133.4

To be specified

 by Purchaser

30.20 73.153.12
 3/426.70 139.731.7579.253.70
133.40 158.835.10 88.90 5.24
1 1/242.20 184.238.10 95.30 7.74
1 1/248.30 203.244.50 111.310.9
260.30 235.00 50.80 127.00 16.2
2 1/273.00 266.757.15142.723.7
3    88.90 304.866.55168.136.2
4114.3355.676.20 190.555.3
5141.3419.191.90 228.692.5
6168.3482.6108.00 273.1143
8219.1552.5127.00 317215
10273673.1165.1419.1406
12323.8762.00 184.2463.6572


Pipe  Hub Data

Raise

 Face

Drilling Data

Nominal

Pipe Size

EFGHIJ

Outside

Diameter

Diameter at

Weld Bevel

Hub

Diameter

Face

Diameter

Number

of Holes

Bolt Hole

Diameter

Diameter of

Circles

of Holes

mmmmmmmm
mmmm
 1/221.30 21.30 42.935.00 422.40 88.90
 3/426.70 26.70 50.842.90 422.40 95.30
133.40 33.50 57.1550.80 425.40 108.00
1 1/242.20 42.20 73.1563.50 428.40 130.00
1 1/248.30 48.30 79.2573.15431.75146.1
260.30 60.4595.391.90 828.40 171.5
2 1/273.00 73.15114.3104.6831.75196.9
3    88.90 88.90 133.4127.00 835.10 228.6
4114.3114.3165.1157.2841.10 273.1
5141.3141.2203.2185.7847.80 323.9
6168.3168.4235215.9853.80 368.3
8219.1219.2304.8269.71253.80 438.2
10273273.00 374.7323.81266.55539.8
12323.8323.8441.5381.00 1273.15619.3


Notes: Class 150Ib - Class 300 Ib: Dimension B corresponds to the pipe inside diameter.

Values quoted assume 40S/Standard wallthickness.


Weights are based on manufacturer's data and approximate. Flat face flanges may be provided at full thickness, C, or with raised face removed (the latter is non-standard).


Class 600 Ib - Class 2500 Ib:

Dimension B corresponds to the pipe inside diameter. Vales quoted assume 40S/Standard wall thickness.

Weights are based on manufacturer's data and are approximate.


Wide range of raw-materials for flanges


Alloy Steel:      ASTM A182 Fl I 1  % Cr Yz% Mo F5 F9 F91 ASTM A182 F22 2   % Cr 1% Mo F92 F911 ASTM A350 LF2 LF3 LF6 etc...

Carbon Steel:  ASTM A l 05 A105N etc...

Stainless Steel:  ASTM A182 F316 F316L F317 F321 ASTM A l 82 F304 F310 F904L F317L F347H

Duplex Steel:    ASTM A182 F51 F53 F54 F55 F57 etc...


• Ratings from 300 lb to 2500 lb

• Sizes from 1" Nominal Bore

• Orifice flanges are intended for use instead of standard pipe flanges

• When an orifice plate or flow nozzle must be installed.

• Sure tappings are machined into the orifice flange, making separate

• Orifice carriers or tappings in the pipe wall is unnecessary.

Message

Message

The function is under construction, so stay tuned!

la fonction est en construction, alors restez branchés!

La función está en construcción, así que ¡mantente atento!

A função está EM construção, então fiquem ligados!

функция находится в стадии строительства, так что оставайтесь на связи!

Sign In

Forgot password?

PURCHASE

Submit
