Butt-Welding Fittings

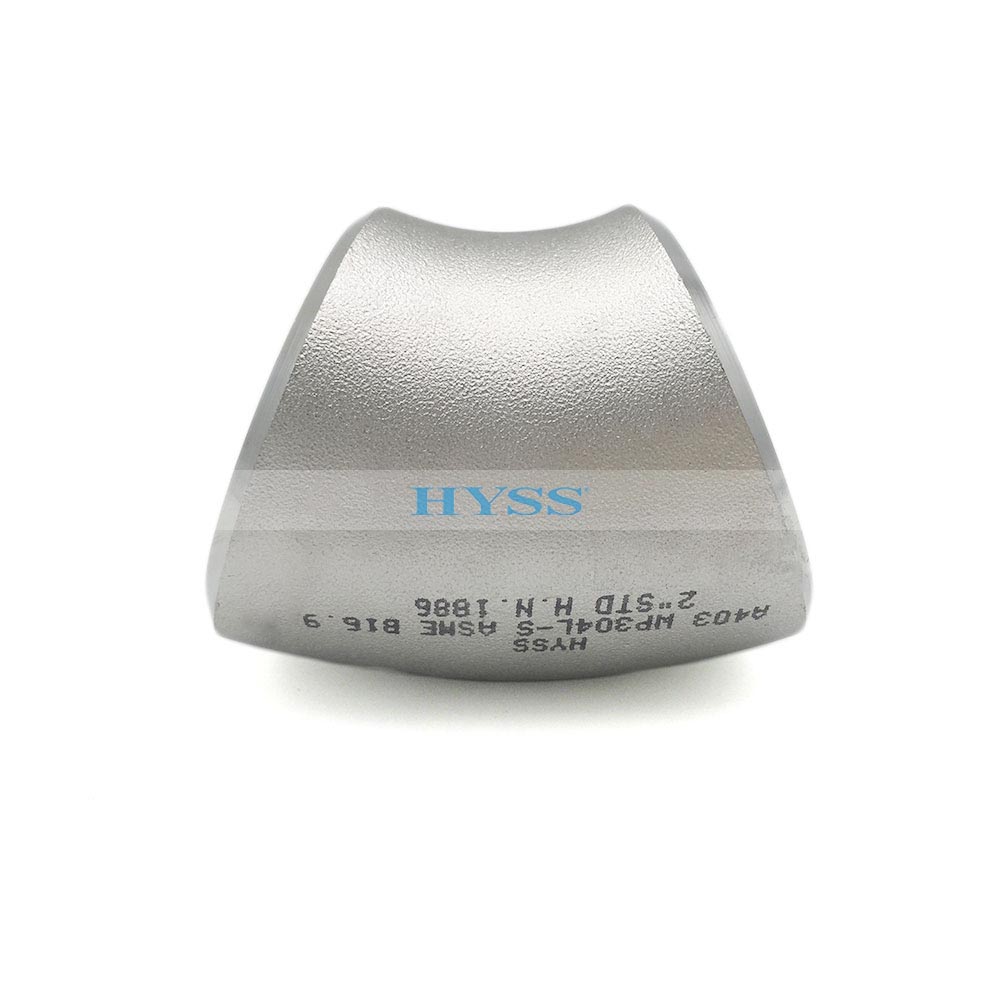

45° Elbows long radius

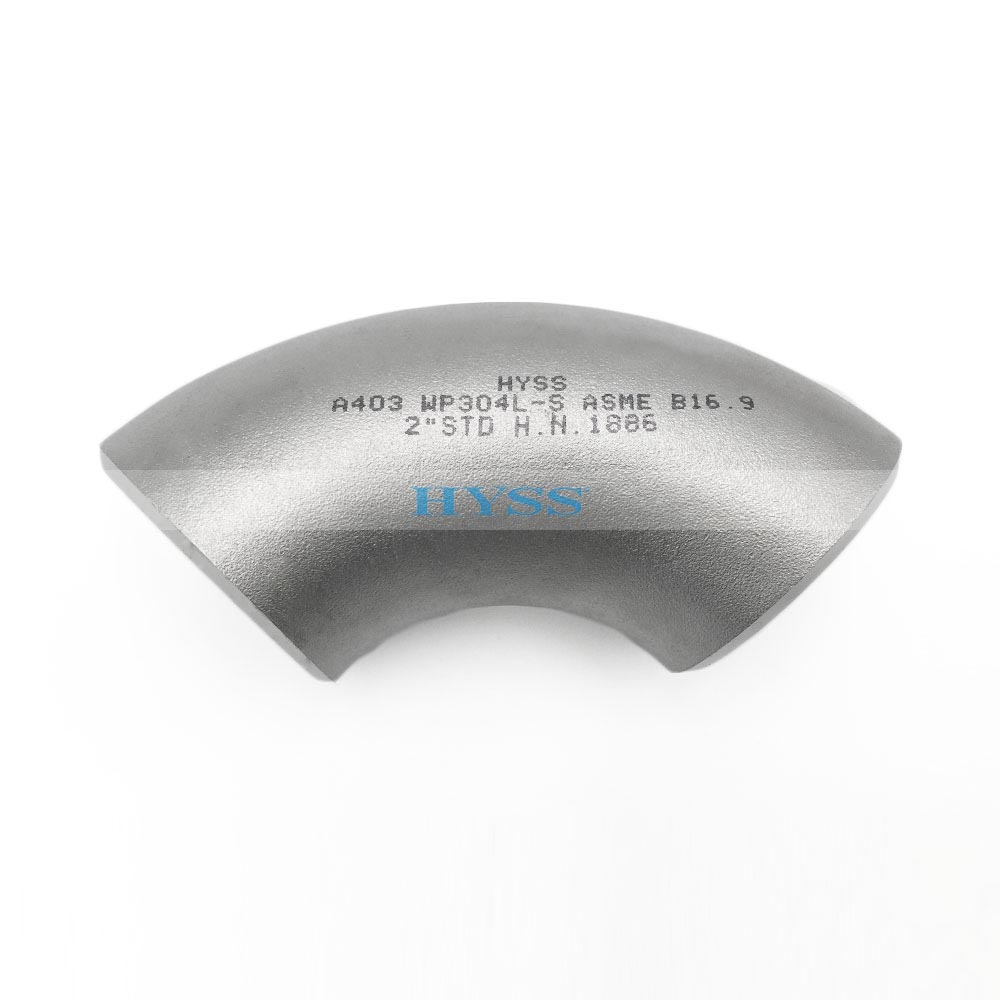

90° Elbows long radius

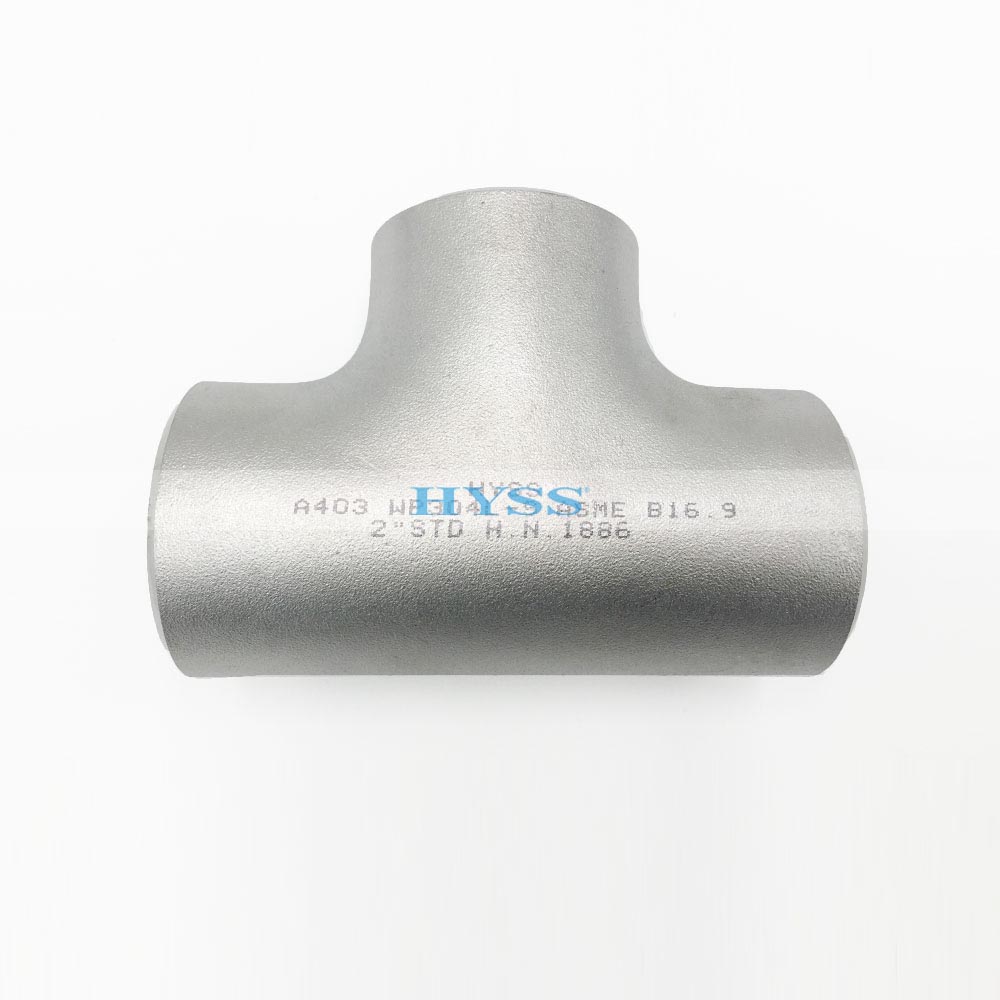

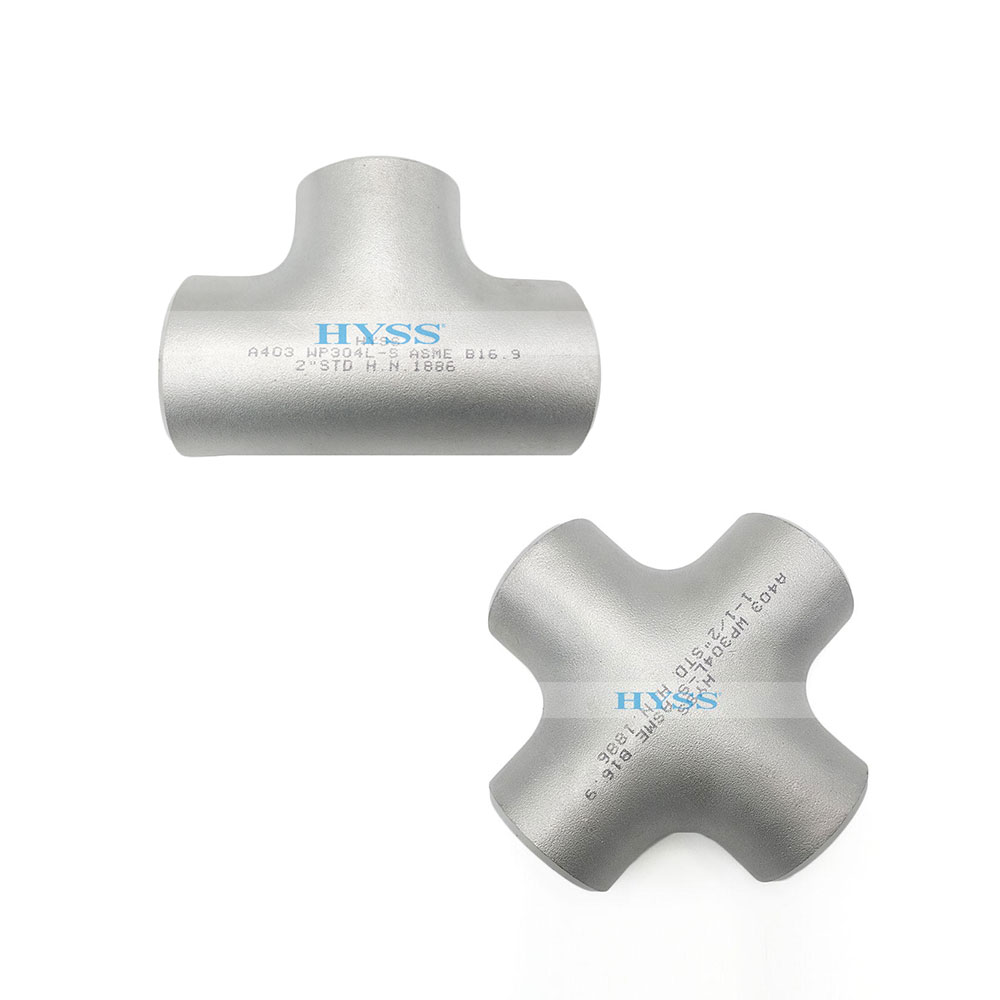

Straight tees & Crosses

Straight tees

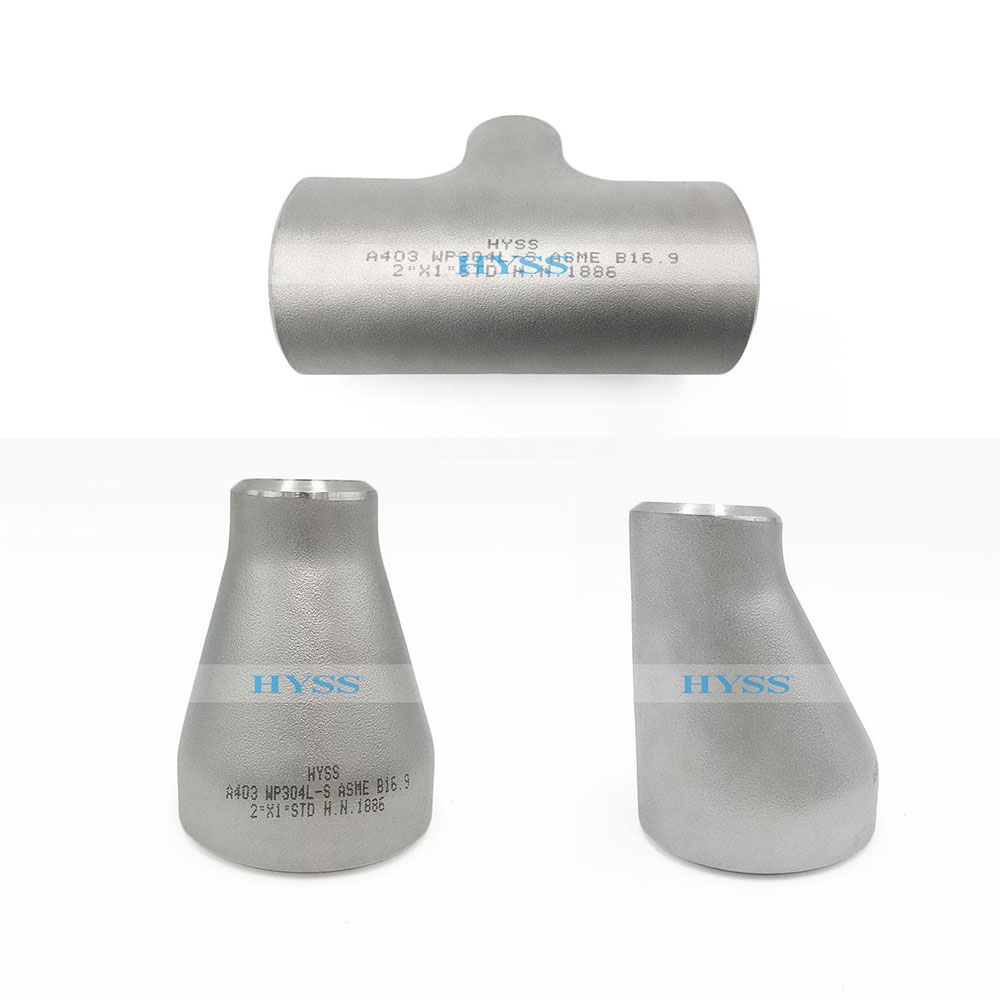

Reducing tees & Reducers

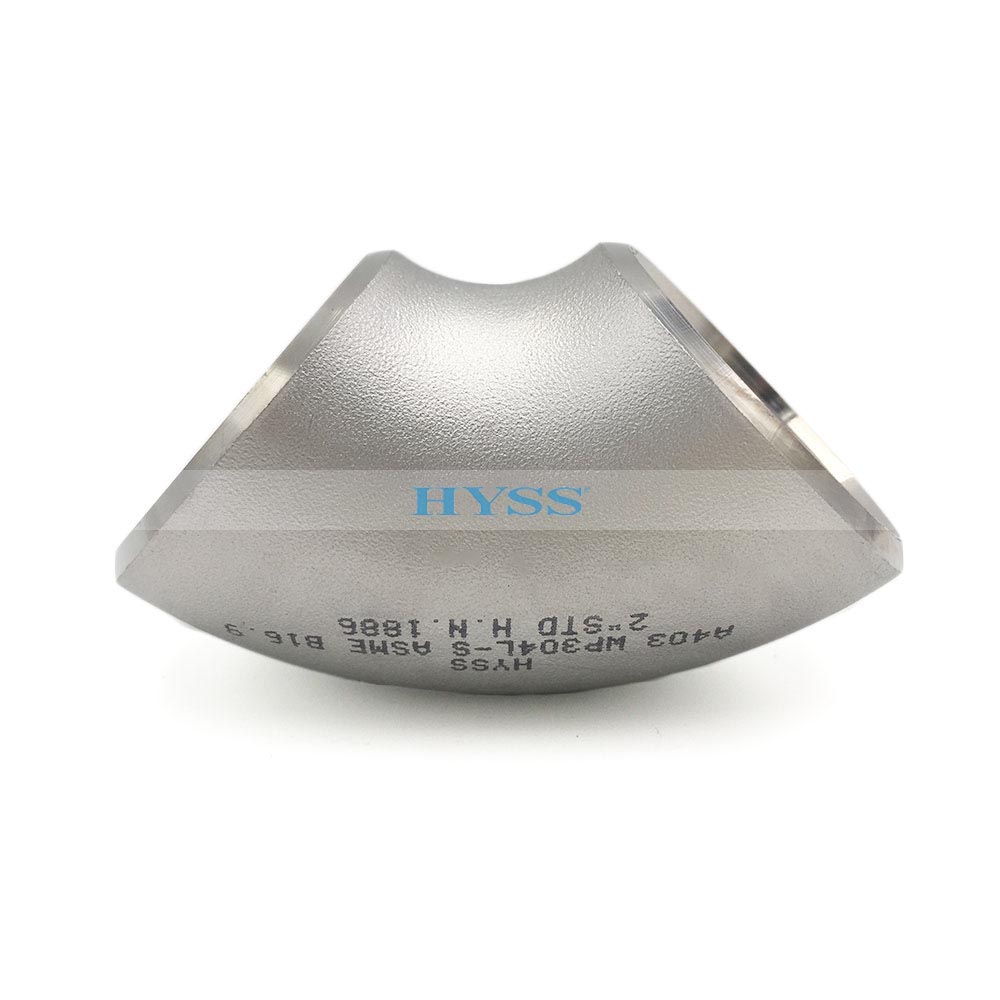

90° Elbows short radius

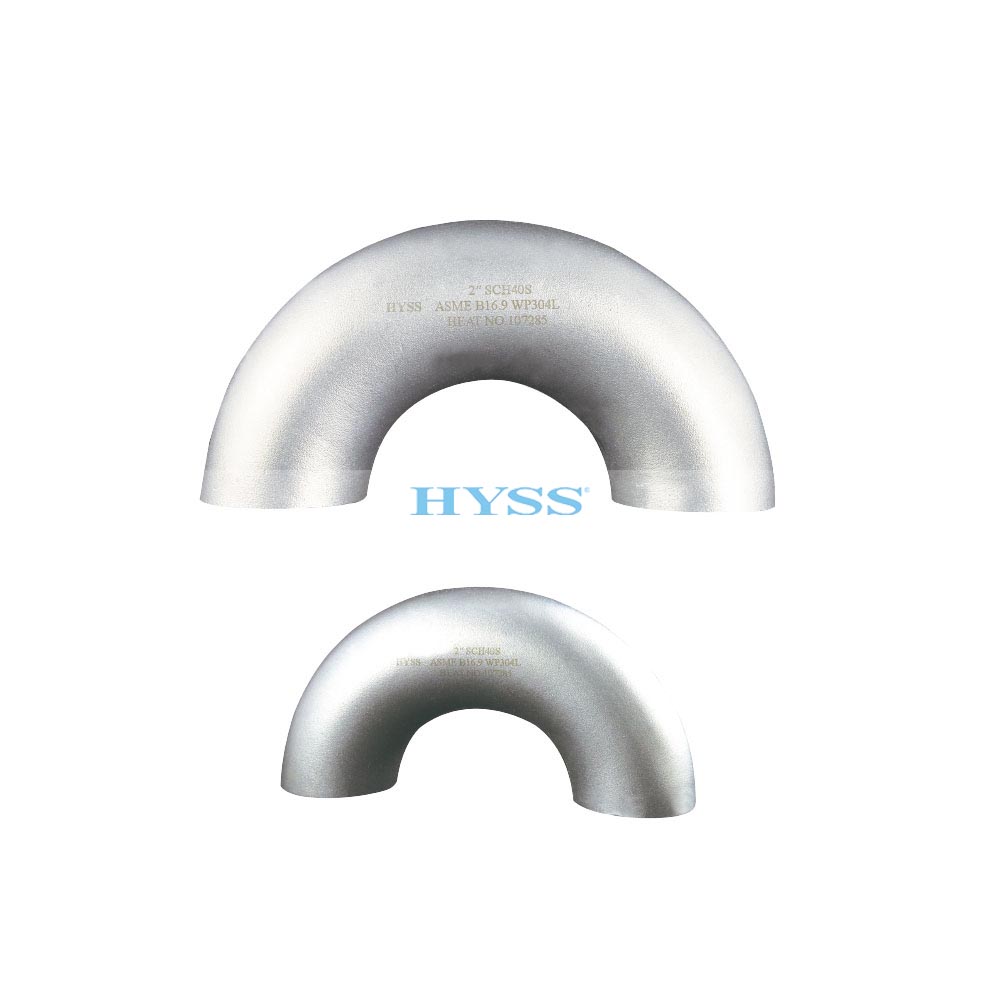

180° Elbows long radius & long radius

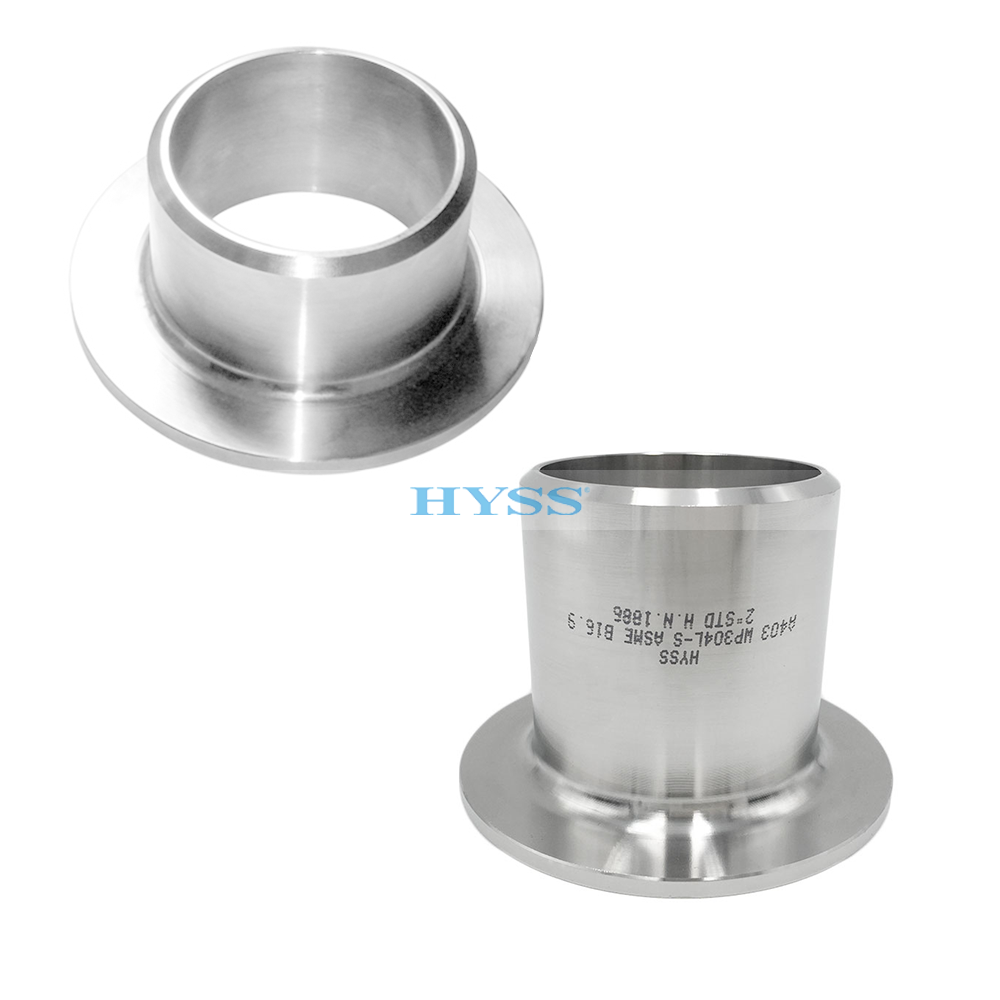

Buttweld Stub Ends

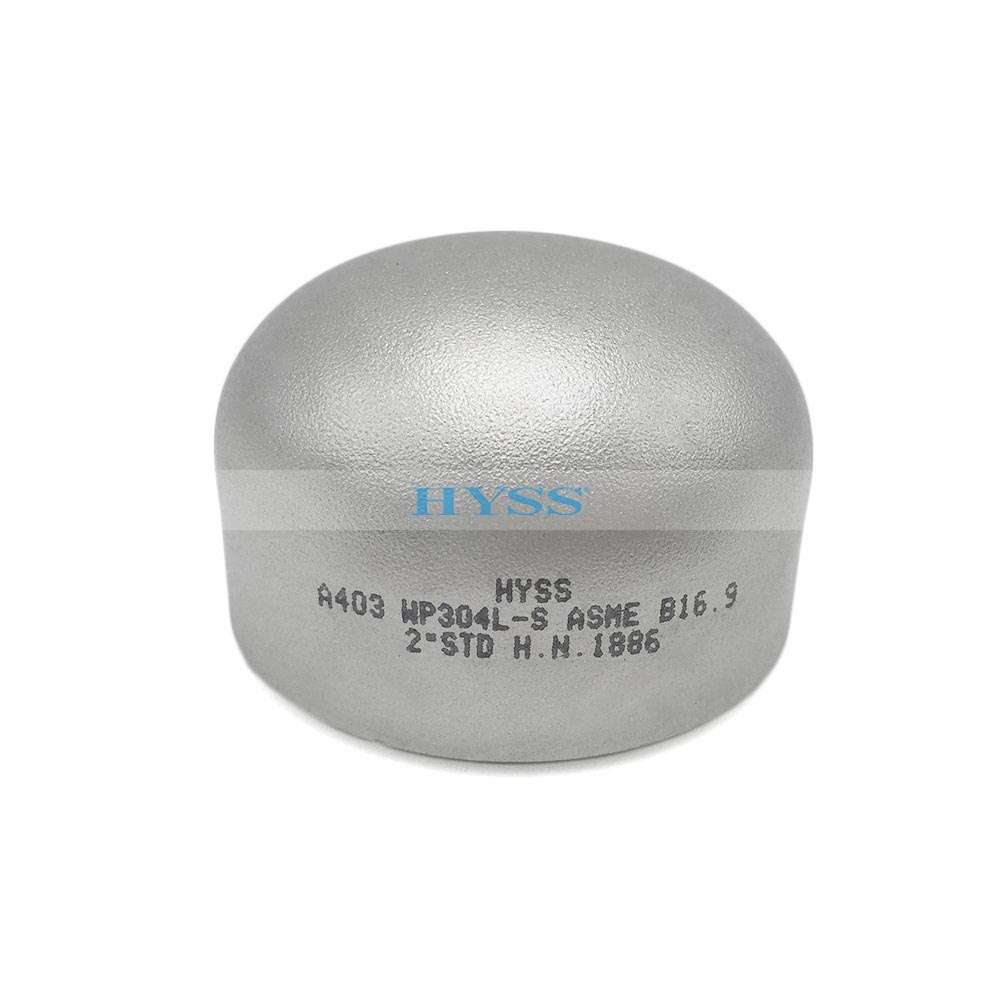

Caps

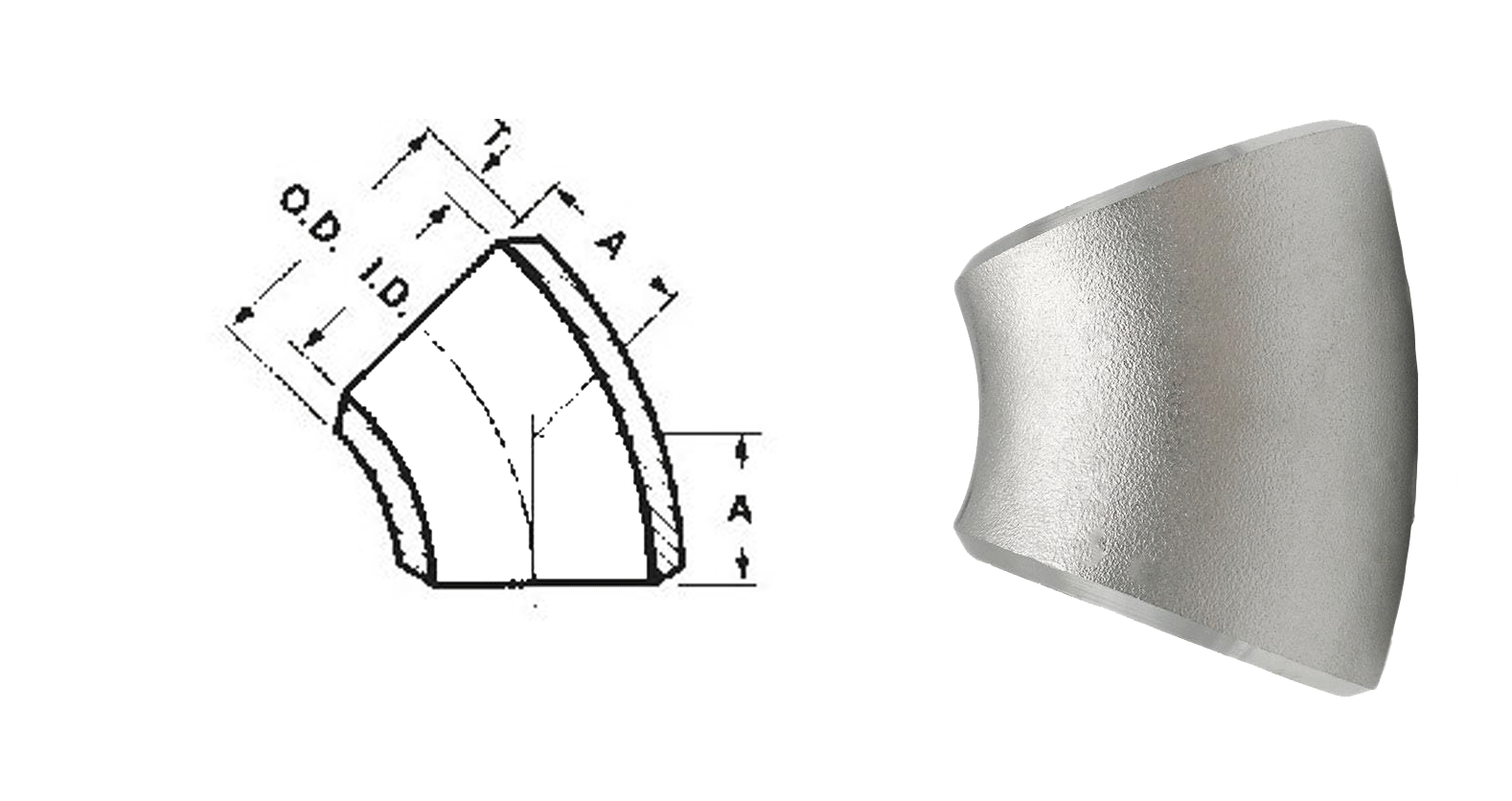

45°elbows long radiusStandard Weight, Extra Strong, Schedule 160,Double Extra StrongCarbon and ferritic alloy steel, carbon , stainlessduplex and alloy steel, ASTM A-234, ASME/ANSI Bl6.9,ASTM A-234,A403, A420,A8 15,ASME/ANSI Bl6.9.





NPS

DN

Outside

Diameter

at Bevel

O.D.

(mm)

Centre

 to

End

Nominal

A

(mm)

SCHEDULE 160DOUBLE EXTRA STRONG

Inside

Diameter

l.D.

(mm)

Wall

Thickness

T

(mm)

Approx.

Weight (kg)

Inside
Diameter l.D.

(mm)

Wall

Thickness

T

(mm)

Approx. Weight (kg)
1/2152116------
3/4202711---11.027.82.08
125332220.706.35.1715.219.09.18
1 1/432422529.466.35.2322.769.70.25
1 1/240482934.007.14.4527.9410.16.52
250603542.858.74.7938.1811.07.96
2 1/265734453.989.531.3544.9814.021.7
380895166.6511.132.058.4215.242.6
3 1/29010257---69.2916.153.9
41001146487.3313.494.380.0617.124.8
512514179109.5515.887.65103.2019.058.6
615016895131.8018.2613.5124.3821.9514.4
8200219127173.0523.0129174.6322.2327.0
10250273150215.9028.5861---
12300324190257.2033.32104---
14350356222284.2035.71125---
16400406254325.4040.49187---




NPS

DN

Outsid

Diameter

at Bevel

O.D.

(mm)


Centre

 to

End

Nominal

A

(mm)

SCHEDULE 160 DOUBLE EXTRA STRONG

Inside

Diameter l.D.

(mm)

Wall

Thickness

T

(mm)

Approx.

Weight

 (kg)

Inside

Diameter

l.D.

(mm)

Wall

Thickness T

(mm)

Approx. Weight

(kg)

1/2152116------
3/4202711---11.027.82.08
125332220.706.35.1715.219.09.18
1 1/432422529.466.35.2322.769.70.25
1 1/240482934.007.14.4527.9410.16.52
250603542.858.74.7938.1811.07.96
2 1/265734453.989.531.3544.9814.021.7
380895166.6511.132.058.4215.242.6
3 1/29010257---69.2916.153.9
41001146487.3313.494.380.0617.124.8
512514179109.5515.887.65103.2019.058.6
615016895131.8018.2613.5124.3821.9514.4
8200219127173.0523.0129174.6322.2327.0
10250273150215.9028.5861---
12300324190257.2033.32104---
14350356222284.2035.71125---
16400406254325.4040.49187---


Notes:

*NPS 3 -1/2 (DN 90) XXS is not specified in ASME/ANSIB36.10M.Produced from x-rayed,stress relieved welded pipe.Welds are 100% radio graphed inaccordance with the requirements of AME Boiler and Pressure Vessel Code.
