HYSS Group lists butt-welding fittings for industrial piping, including long-radius and short-radius elbows, tees, crosses, reducers, caps and stub ends. The product page includes ASTM A403 and ASME/ANSI B16.9 references with published dimension data.
90° Elbows long radius
45° Elbows long radius
Straight tees & Crosses
Straight tees
Reducing tees & Reducers
90° Elbows short radius
180° Elbows long radius & long radius
Buttweld Stub Ends
Caps
90°Elbows Long Radius
Standard Weight, Extra Strong, Schedule 160, Double Extra Strong Carbon and ferritic alloy steel, carbon , stainless duplex and alloy steel, ASTM A-234, ASME/ANSI Bl6.9,ASTM A-234,A403, A420,A8 15,ASME/ANSI Bl6.9.
NPS DN | Outside Diameter at Bevel O.D. (mm) | Centre to End Nominal A (mm) | STANDARD WEIGHT | EXTRA STRONG | |||||
Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | ||||
| 15 | 21 | 38 | 15.80 | 2.77 | 0.09 | 13.87 | 3.73 | .09 | |
| 3/4 | 20 | 27 | 29 | 20.93 | 2.87 | 0.14 | 18.85 | 3.91 | .09 |
| 1 | 25 | 33 | 38 | 26.64 | 3.38 | 0.18 | 24.31 | 4.55 | 0.23 |
| 1 1/4 | 32 | 42 | 48 | 35.05 | 3.56 | 0.23 | 32.46 | 4.85 | 0.32 |
| 1 1/2 | 40 | 48 | 57 | 40.89 | 3.68 | 0.34 | 38.10 | 5.08 | 0.45 |
| 2 | 50 | 60 | 76 | 52.50 | 3.91 | 0.68 | 49.25 | 5.54 | 0.9 |
| 2 | 65 | 73 | 95 | 62.71 | 5.16 | 1.35 | 59.00 | 7.01 | 1.8 |
| 3 1/2 | 80 | 89 | 114 | 77.93 | 5.49 | 2.03 | 73.66 | 7.62 | 2.7 |
| (2)3 1/2 | 90 | 102 | 133 | 90.12 | 5.74 | 2.8 | 85.45 | 8.08 | 3.83 |
| 4 | 100 | 114 | 152 | 102.26 | 6.02 | 3.8 | 97.18 | 8.56 | 5.4 |
| 5 | 125 | 141 | 190 | 128.19 | 6.55 | 6.4 | 122.25 | 9.53 | 9.0 |
| 6 | 150 | 168 | 229 | 154.05 | 7.11 | 10.4 | 146.33 | 10.97 | 14 |
| 8 | 200 | 219 | 305 | 202.72 | 8.18 | 20 | 193.68 | 12.70 | 31 |
| 10 | 250 | 273 | 381 | 254.5 | 9.27 | 35 | 247.65 | 12.70 | 50 |
| 12 | 300 | 324 | 457 | 304.8 | 9.53 | 53 | 298.45 | 12.70 | 68 |
| 14 | 350 | 356 | 533 | 336.6 | 9.53 | 66 | 330.2 | 12.70 | 86 |
| 16 | 400 | 406 | 610 | 386.1 | 9.53 | 91 | 381.0 | 12.70 | 116 |
| 18 | 450 | 457 | 686 | 438.2 | 9.53 | 115 | 431.8 | 12.70 | 147 |
| 20 | 500 | 508 | 62 | 489.0 | 9.53 | 139 | 482.6 | 12.70 | 189 |
| 22 | 550 | 559 | 838 | 539.8 | 9.53 | 177 | 533.4 | 12.70 | 234 |
| 24 | 600 | 616 | 914 | 590.6 | 9.53 | 201 | 584.2 | 12.70 | 273 |
| 26 | 650 | 660 | 991 | 641.4 | 9.53 | 247 | 635.0 | 12.70 | 328 |
| 30 | 750 | 762 | 1143 | 743.0 | 9.53 | 331 | 736.6 | 12.70 | 429 |
| 36 | 900 | 914 | 1372 | 895.4 | 9.53 | 478 | 889.0 | 12.70 | 635 |
| 42∆ | 1100 | 1067 | 1600 | 1,047.8 | 9.53 | 616 | 1,041.1 | 12.70 | 820 |
NPS DN | Outside Diameter at Bevel O.D. (mm) | Centre to End Nominal A(mm) | SCHEDULE 160 | DOUBLE EXTRA STRONG | |||||
Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | ||||
| 15 | 21 | 38 | - | - | - | - | - | - | |
| 3/4 | 20 | 27 | 29 | - | - | - | - | - | - |
| 1 | 25 | 33 | 38 | 20.7 | 6.35 | 0.27 | 15.21 | 9.09 | 0.36 |
| 1 1/4 | 32 | 42 | 48 | 29.5 | 6.35 | 0.45 | 22.76 | 9.70 | 0.63 |
| 1 1/2 | 40 | 48 | 57 | 34.0 | 7.14 | 0.81 | 27.94 | 10.16 | 0.90 |
| 2 | 50 | 60 | 76 | 42.9 | 8.74 | 1.44 | 38.18 | 11.07 | 1.71 |
| 2 | 65 | 73 | 95 | 54.0 | 9.53 | 2.70 | 44.98 | 14.02 | 3.20 |
| 3 1/2 | 80 | 89 | 114 | 66.7 | 11.13 | 4.05 | 58.42 | 15.24 | 5.04 |
| (2)3 1/2 | 90 | 102 | 133 | - | - | - | 69.29 | 16.15 | 7.3 |
| 4 | 100 | 114 | 152 | 87.3 | 13.49 | 8.5 | 80.06 | 17.12 | 9.5 |
| 5 | 125 | 141 | 190 | 109.6 | 15.88 | 15 | 103.20 | 19.05 | 17 |
| 6 | 150 | 168 | 229 | 131.8 | 18.26 | 27 | 124.38 | 21.95 | 28 |
| 8 | 200 | 219 | 305 | 173.05 | 23.01 | 57 | 174.63 | 22.23 | 54 |
| 10 | 250 | 273 | 381 | 215.90 | 28.58 | 122 | |||
| 12 | 300 | 324 | 457 | 257.20 | 33.53 | 207 | |||
| 14 | 350 | 356 | 533 | 284.18 | 35.71 | 253 | |||
| 16 | 400 | 406 | 610 | 325.42 | 40.49 | 371 | |||
| 18 | 450 | 457 | 686 | 1) May be furnished as 1.5 in (38mm) at the manufacturer's option. 2) 3-1/2XXS is not specified in ASME/ANST B36.10M. (∆)Produced from X-rayed, stress-relieved welded pipe. Welds are 100% radiographed in accordance with the requirements of ASME Boiler&Pressure Vessel Code. These fittings are also available in other sizes and/or wall thicknesses. | |||||
| 20 | 500 | 508 | 62 | ||||||
| 22 | 550 | 559 | 838 | ||||||
| 24 | 600 | 616 | 914 | ||||||
| 26 | 650 | 660 | 991 | ||||||
| 30 | 750 | 762 | 1143 | ||||||
| 36 | 900 | 914 | 1372 | ||||||
| 42∆ | 1100 | 1067 | 1600 | ||||||

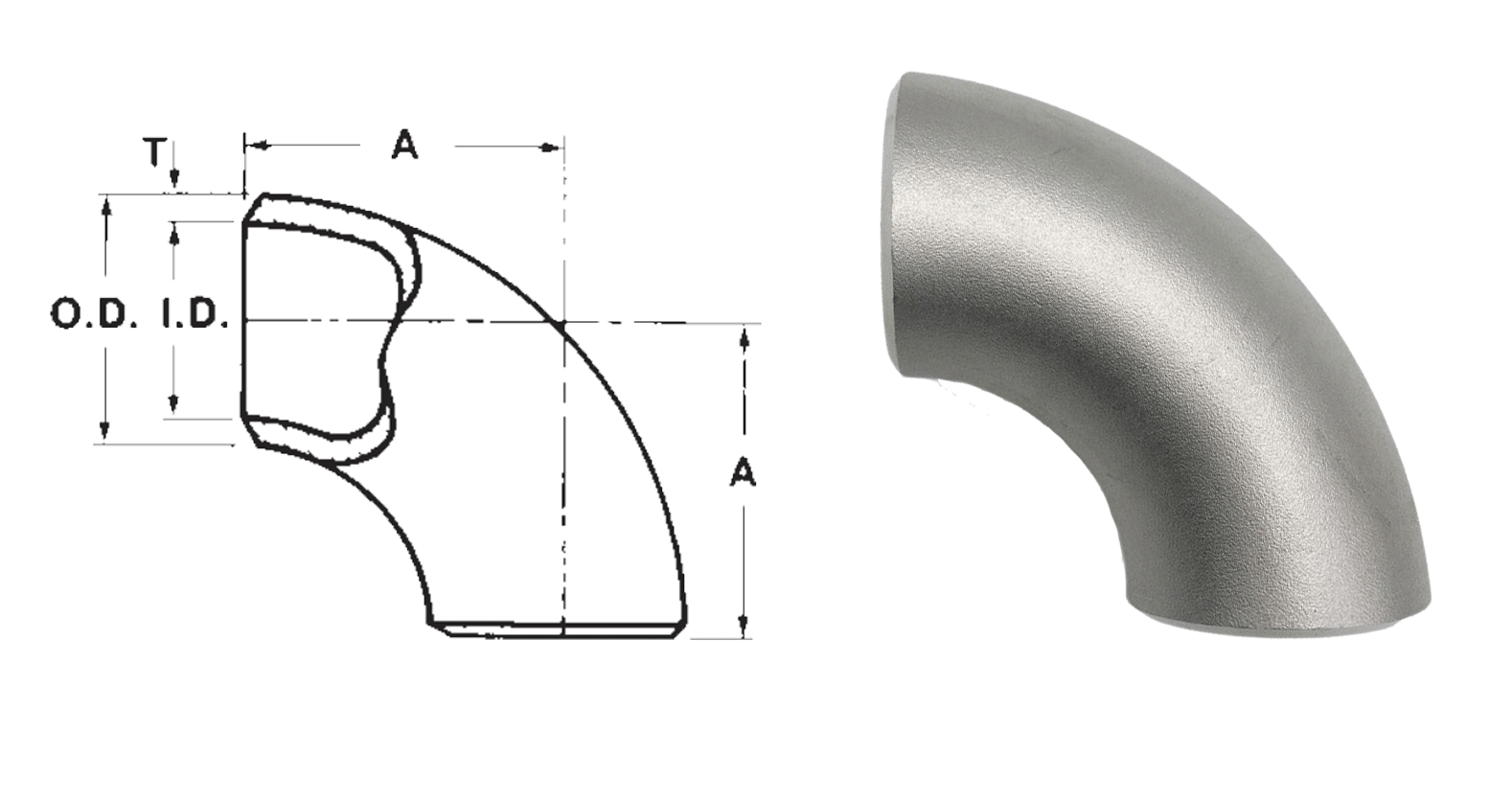

45°elbow long radius and 90°elbow long radius MILLIMETRES KILOGRAMS
Size range: 1/2'' - 48''
Materials include: stainless steel, carbon and alloy steel, duplex,supper duples. ASME/ANSI B16.28 ASTM A-234 ASME/ANSI B16.9 ASTM A403 A234 A420 ASTM A8 15 AWWA C208
